DCL features two (2) HD Ku mobile satellite trucks with Dual and Quad Path capability and one HD C-Band Dual Path.

Our HD Digital Transportable Earth Stations (TES) are complete, self-contained vehicles capable of providing both transmission and full multi-camera production services as well as being designed to deliver data and voice SCPC for disaster recovery at any location. DCL’s dedicated staff can respond at a moment’s notice to provide efficient coverage of any breaking story or special.

Applications include

  • SNG
  • Media Tours
  • Satellite Videoconferencing
  • Sporting Events
  • Business Television
  • Web Casting
  • Entertainment Events/ Television
  • High Definition Events
  • High Definition Transmission
  • Disaster Recovery

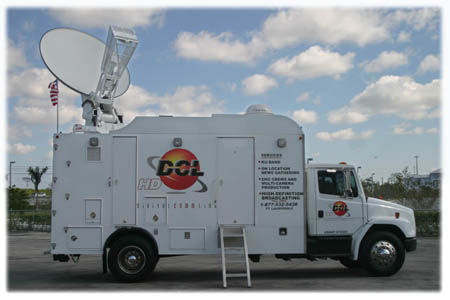

Our Mobile Satellite Trucks

Dimensions

30′ X 8′ X 13.5′

Analog / Digital

Dual Path

HD

Dual Path

Generator

20 KW

Production

Multi-camera

Editing

Yes

Certified

ESPN

Quantity

Description

2

Tandberg E-5788 HD Encoders HD/SDI   MPEG-2

2

Tandberg HD Encoders HD/SDI   MPEG-4



2

Tandberg 1290 IRS5 Decoder 4:2:2 SDI/HD



BISS Encryption On All Encoders

Quantity

Description

2

MCL 300 watt transmitters fully redundant with hot standby

2

Raydyne Upconverters w/ auto switch over

1

Miteq Upconverter

2

Scientific Atlanta Video Receivers

2

Scientific Atlanta KU Exciters

1

Miteq Loop Test Translator

1

Tetronics Spectrum Monitor

Quantity

Description

1

Harris HD Vector/Waveform/7.1 Surround Sound Scopes

1

Transport Stream Analyzer

1

Wholer Audio Monitor Embedded/AES/Analog

1

Maranda-Alto 10 Input HD/SDI Multi-Screen Monitor

1

Dolby-E Decoder

1

Dish Network System

Quantity

Description

1

Wireless IFB System

1

Studio Technologies IFB Plus

1

JK Audio Innkeeper IFB Hybrid

4

Cell Phones

1

Telos Interface Unit

Quantity

Description

1

2.4 Meter General Dynamics Antenna

1

RCI Satellite Locator

1

Electronic Compass

1

Navigation System

Dimensions

34′ X 8′ X 13′

Digital

Triple Path

Generator

Twin 20 KW

Production

Multi-camera

Editing

No

Quantity

Description

2

Upcom HD/SD MPEG4 Encoder

2

Adtec Encoders capable of 16 Channels of Audio

1

BISS Encryption On All Encoders

Quantity

Description

2

MCL 300 Watt TWT Amplifiers

1

Standard Broadcast Agile Omni Receiver

1

Standard Intercontinental Receiver

1

Tetronics Spectrum Monitor



Quantity

Description

1

Blackmagic 16×32 Routing Switcher

1

Blackmagic Waveform/Vectorscope

1

16 Input Mutiviewer

1

Dish Network System

Quantity

Description

1

Wireless IFB System

1

Studio Technologies IFB Plus

1

JK Audio Innkeeper IFB Hybrid

4

Cell Phones

1

Telos Interface Unit

Quantity

Description

1

2.4 Meter Antenna with prime focus feed horn
